Etching DBC Ceramic Substrate for Automotive Electronics
DBC
Ceramic Substrate can be applied in various kinds of packaging of electronic
module with possibility to etch various kinds of pattern on copper surface. At
high temperatures, a copper foil substrate is bonded directly to the surface
(single or double sided) of an AI203 OR AIN ceramic substrate. It is a green
product without pollution and public harm, which also has a wide range of
operating temperature. This substrate has many superiorities, for example, it
is highly resistant to vibration and wear, ensuring its long service life.
Also, A large number of high-voltage, high-power devices have high requirements
for heat dissipation, and ceramic substrates have a better heat dissipation
effect. Moreover, it has excellent electrical insulation performance, excellent
soft brazability, high adhesion strength and a large current-carrying capacity.
It is widely used in many fields, including electronic heater, automotive
electronics, aerospace and military electronic element, solar panel element,
high-power power semi-conductor module, solid-state relay and many other
industry electronic fields.
We
custom high precision DBC Substrate with
drawings provided by customers. The raw material we use for etched DBC substrate is Ceramic-based double-sided
copper clad laminate. We are equipped with professional metal etching equipment and exposure development equipment. Our
etching process can achieve double-sided etching of different graphics with 0.3
mm - 0.8mm thickness of copper clad laminate. Also, we can guarantee that our double-sided copper clad laminate substrate is neatly
arranged, straight surface line, and have no burr, high product accuracy.
Below
are the specific parameters of this product, please check more semiconductor chip carrier in our website for more
ideas.
Material
Ceramic-based Double-sided Copper Clad
Laminate
Thickness of Copper Clad Laminate
0.3 mm - 0.8mm
Manufacturing
Capacity Minimum Spacing
0.5 mm - 1.2mm
Manufacturing
Capacity Side Corrosion
0 mm - 0.3mm
DCB
Performance Advantages
Good
mechanical strength
Good
thermal conductivity
Coefficient
of thermal expansion close to silicon
Good
thermal stability
Good
insulation/dielectric strength
Possibility
to etch various kind of pattern like PCB substrate

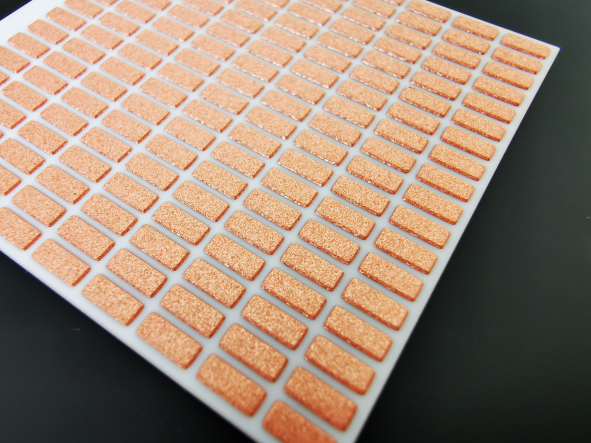

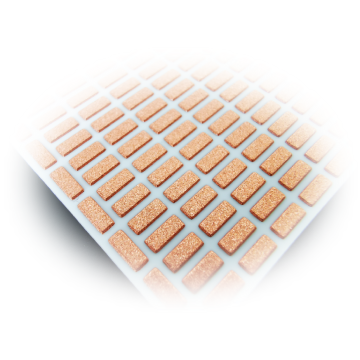

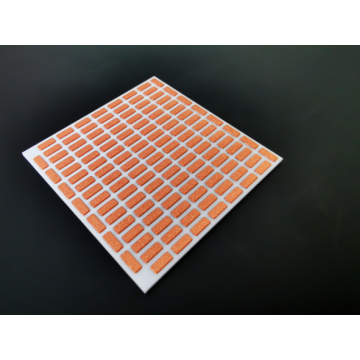

DBC SUBSTRATE PIC
