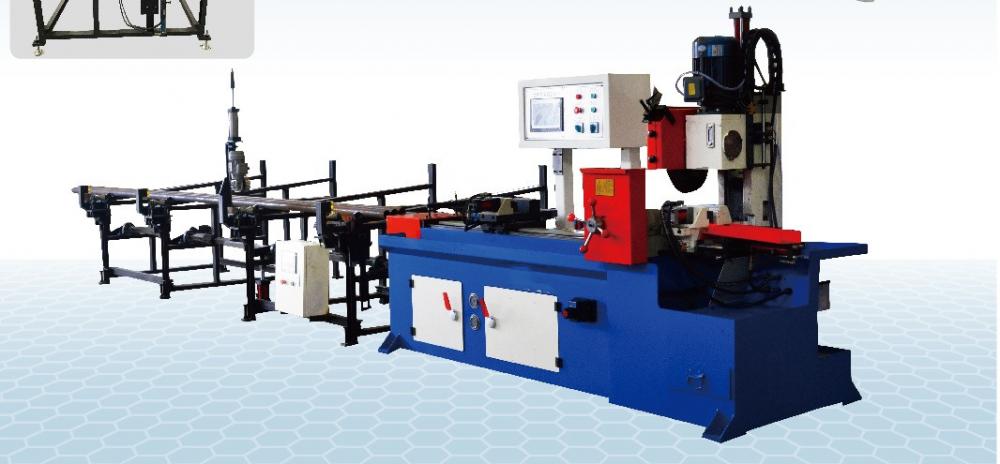

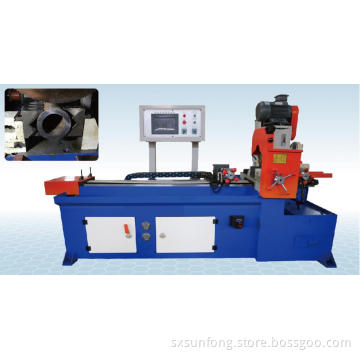

Servo Feeding Automatic Stainless Steel Pipe Cutter
Servo Feeding Machine adopts vertical slide type up and down feed back cutter, stable feed, long service life and high cutting accuracy.European design, the Electric Steel Pipe Cutter head should use long axis and short distance. Worm gear transmission, better cutting ability and low noise.The feeding system is carefully designed, and the feeding length is set with 10-650mm / MZ (three times feeding) feeding floating clamp system to ensure no damage to the workpiece surface and higher precision.Unique main clamp, strong strength, firm and stable.Tube Pipe Cutting Machine the coolant is recycled and iron chips are recycled.
Technical Parameters
Spindle motor power
4kw (double speed)
Applied saw
Φ 285-450mm (Φ 500mm saw blade can be customized)
Cooling water pump power
90w
Maximum opening of jaw
160mm
Single feeding length
1000mm / 1500mm / time,Multiple feeding
Cutting accuracy
±0.1mm
Maximum cutting capacity
Circular tube
Φ 120mm (customized for Φ 160mm)
Tetragonal tube
100×100mm
Rectangular tube
120×80mm
Angle iron
100×100mm
Round steel
Φ30mm
