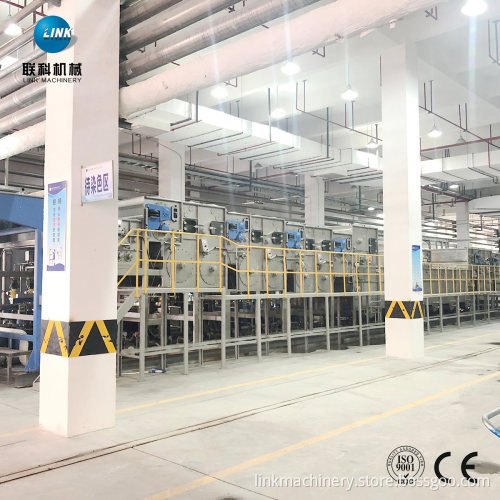

TEXTILE DYED PROCESS FIX COLOR WASHING MACHINE
Product Introduction:
Open width fix color washing machine for dyed fabric
This machine apply to dyed fabric's fix color and washing for cotton, rayon and cotton blend knit fabric.
High automation:
01 The whole machine fully automatically control production, include visual running status, can check history production data, alarm production consumables, list machine running error and so on. powerful operation mode.
02 Control system with recipe management system, improved operation simplicity.
03 Touch screen visually show the production output, water and steam consumption, easy to collect and analyse the energy consumption.
04 The machine's central control system is from newest Siemens products, can realize the connection with ERP system and remote to know the machine running data and remote diagnose.
Recipe management control system:
01 Intelligent recipe control system can work out control data according to production process requirements. There are 0-80 item editable data for each recipe according to different machine. These data include fill chemical, fill water, temperature, pressure, motor drive ratio, tension, flowback or direct drain, PH value, loose or tight fabric pass way switch and so on, to improve the process reproducibility.
02 Operation system can set user grade and operation permissions, easy to operate and manage.
03 System automatically record production running data and can track and check process flow.
Tension sensor: detect running tension, PLC control the machine synchronously running in low tension according to pre-set tension value.
Automatic dosing device: according to pre-set recipe, automatically control dosing, equipped with warning function of lack chemicals.
Rolling bed steamer: fabric move in steamer, to get better even reaction between chemical and fabric.
Heat exchanger: fabric pre-heat the feeding water to make sure the even temperature of each chamber.
Dwell washing chamber: Can choose dwell neutralize wash or dwell fix color wash according to different recipe setting. One key to switch tight fabric pass way.
Proportional valve: flowmeter automatically control water inflow of each chamber according to recipe setting.
Technical Parameter
Working width: 2200-2600mm
Main voltage: 380V/3PHASES/50HZ
Air pressure: 7bar
Steam pressure: 4bar
Water pressure: 2bar
Operation style: left hand or right hand (optional)
